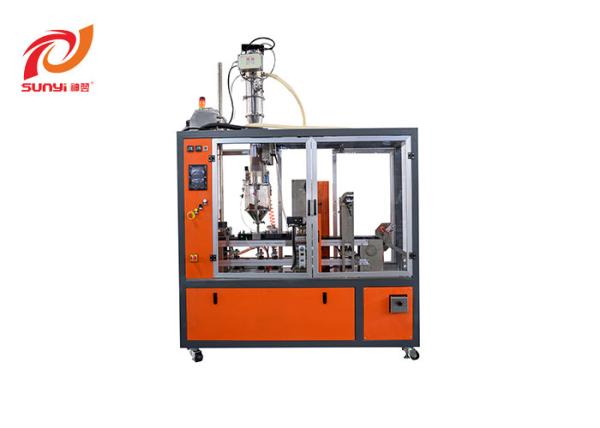

Wholesale European Standard Nespresso Capsule Coffee Making Sealing Filling Machine

Product Categories

Coffee Capsule Filling Sealing Machine [78]
Nespresso Capsule Filling Machine [166]
K Cup Filling And Sealing Machine [114]
Coffee Capsule Packaging Machine [42]
Lavazza Filling Sealing Machine [73]
Dolce Gusto Coffee Filling Sealing Machine [56]
Plastic Cup Filling Sealing Machine [14]
Coffee Pod Packaging Machine [2]
Coffee Bag Packing Machine [4]
Coffee Capsule Carton Packing Machine [30]
Empty Coffee Capsules [20]
Auxiliary Packaging Equipment [6]

Jiangsu Sunyi Machinery Co., Ltd.

Contact Now

Wholesale European Standard Nespresso Capsule Coffee Making Sealing Filling Machine

Name: Wholesale European Standard Nespresso Capsule Coffee Making Sealing Filling Machine
Brand: sunyi
Price: 9 USD

Buy cheap Wholesale European Standard Nespresso Capsule Coffee Making Sealing Filling Machine product

Brand Name : sunyi

Model Number : nespresso coffee capsule filling sealing machine

Certification : ISO 9001, CE, SGS

Place of Origin : China

MOQ : 1 set

Price : USD 9,000 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200000 pcs per month

Delivery Time : 30 days

Packaging Details : wrapped with plastic films and packed in a box

Product name : Nespresso Capsule Coffee Making Sealing Filling Machine

Warranty : 1 year

Capacity : 2700-3500pcs/min

Filling weight : 0-6g

Filling accuracy : ±0.15g

Capsule material : pp aluminum biodegradable

Filling material : coffee powder

Key selling point : High speed, stable,Delivery lead time is short

Contact Now

Whole Sale Full Automatic Hot Sale Stable Europe Standard Best Nespresso Capsule Coffee Making Sealing Filling Machine

paramaters of the nespresso coffee capsule filling machine

Product Parameters
High speed low price high configuration coffee capsules filling sealing machine for roastery factory
Machine Construct material	All the product contact parts are food grade stainless steel AISI 304. The machine is constructed of stainless steel, anodized aluminum mold and painted iron plate and special plastic.
Certificate	CE, SGS , ISO 9001,FDA, CSA
The packed object	Fresh ground coffee; instant coffee; tea products; other food powder
Capacity	2700 – 3500 pcs/hour
Filling system	Auger filler driven by servo motor
Filling accuracy	±0.1 g
Filling range	0-20 g
Hopper capacity	10 L
Power	1.5 KW
Voltage	Single phase, 110V 220V 380V,50/60 HZ
Compressed air consumption	300 L/minute
Compressed air supply	Dry compressed air,≥6 Bar
Weight	700 Kg
Dimension	1900mm(L)1118mm(W)2524mm(H)
Delivery packaging	Wooden box

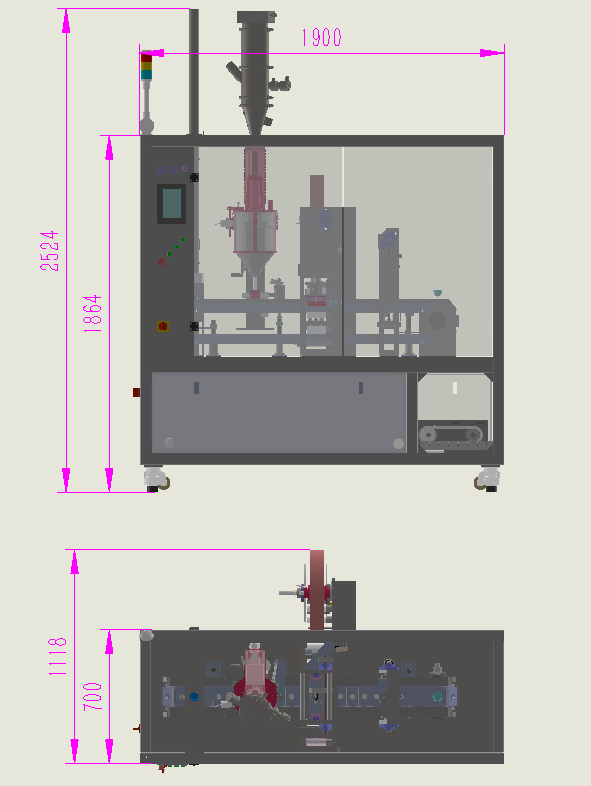

layout of the nespresso coffee capsule filling machine

Wholesale European Standard Nespresso Capsule Coffee Making Sealing Filling Machine

configuration of the nespresso coffee capsule filling machine

Items	Brand
Servo motor and driver	Schneider/Siemens/AB…(optional)
Pneumatic parts	SMC/AIRTAC/FESTO (optional)
Touch screen	Omron/Schneider(optional)
PLC	Schneider/Siemens/AB…(optional)
Machine Frame	Food grade 304/316

procedures of the nespresso coffee capsule filling machine

Wholesale European Standard Nespresso Capsule Coffee Making Sealing Filling Machine

Vertical capsules/cups loading

Shelves for auxiliary storage capsules/cups. Storage bin for 150-200 pcs capsules/cups.
 Stable separation system.
 Capsule/cup bottom holding device with vacuum.

Empty Capsule detection

The light sensor is used to identify whether
 there are empty capsules in the holes of the mold plate for packaging, and to judge whether a series of mechanical actions such as subsequent filling are performed.

Filling system

Auger filler driven by Servo motor.
 Constant speed mixing device ensures that the density of coffee is always uniform and there is no cavity in the hopper.
 Visualized hopper.
 The whole hopper can be pull out and moved for easy cleaning.
 Special filling outlet structure ensures stable
 weight and no powder spreading.
 Powder level detection and vacuum feeder
 automatically convey powder

Capsule/cups top edge clean-up and Tamping

Powerful vacuum clean-up device for top edge of capsules/cups to get a good sealing effect
 Pressure adjustable stamping, it compacting powder strong, when brew coffee, it will get a good espresso.
 extrac more crema.

Nitrogen input system and protected device

Use organic glass to cover the mold, from empty capsule feeding station to sealing lids station ,all process are flushed with nitrogen. Besides, powder hopper also have nitrogen inlet, it can guarantee coffee production is under the motified atmoshpere, it will reduce each capsule's residual oxygen content lower than 1% , keep coffee aroma, prolong coffee shelf life.
